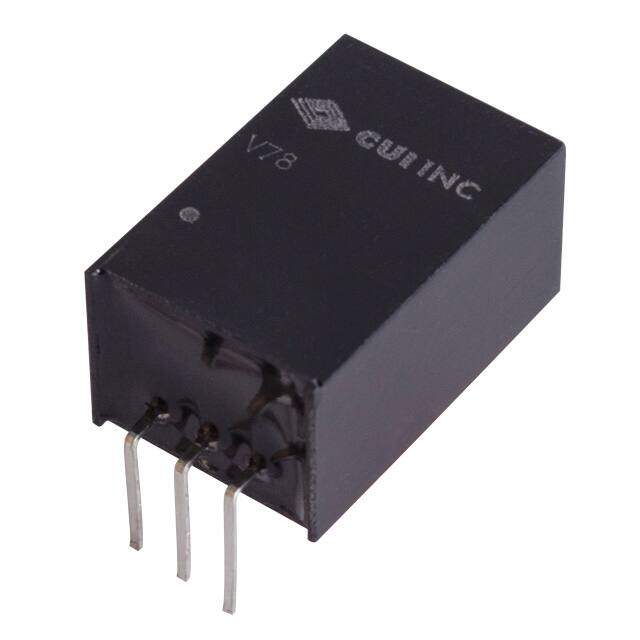

V7806W-500R
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVRT DC/DC REG 6.5V 500MA 3SIP
PDF
/
Buying Options
Total Price: USD $10.67
Unit Price: USD $10.6656
≥1 USD $10.6656
Inventory: 27
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2016
Series V78W-500
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Max Power Dissipation 3.25W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-T3
Number of Outputs 1
Efficiency 91%
Voltage - Input (Max) 72V
Output Voltage 6.5V
Max Output Current 500mA
Voltage - Output 1 6.5V
Voltage - Input (Min) 9V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Power 3.25W
Isolation Non-Isolated
Dimensions
Height 8.89mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
