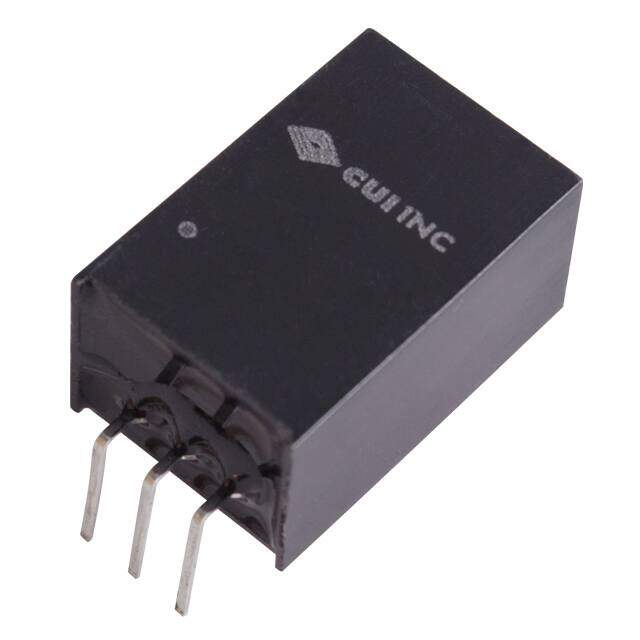

V7806-2000R
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 12VIN 1-OUT 6.5V 2A 13W 3-Pin SIP Module
PDF
/
Buying Options
Total Price: USD $20.51
Unit Price: USD $20.5057
≥1 USD $20.5057
≥10 USD $19.345
≥100 USD $18.25
Inventory: 1035
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series V78-2000
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Linear Regulator Replacement
Applications ITE (Commercial)
Max Power Dissipation 13W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Efficiency 92%
Voltage - Input (Max) 18V
Output Voltage 6.5V
Max Output Current 2A
Voltage - Input (Min) 8.5V
Output Power 13W
Current - Output 1 2A
Isolation Non-Isolated
Dimensions
Height 8.89mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
