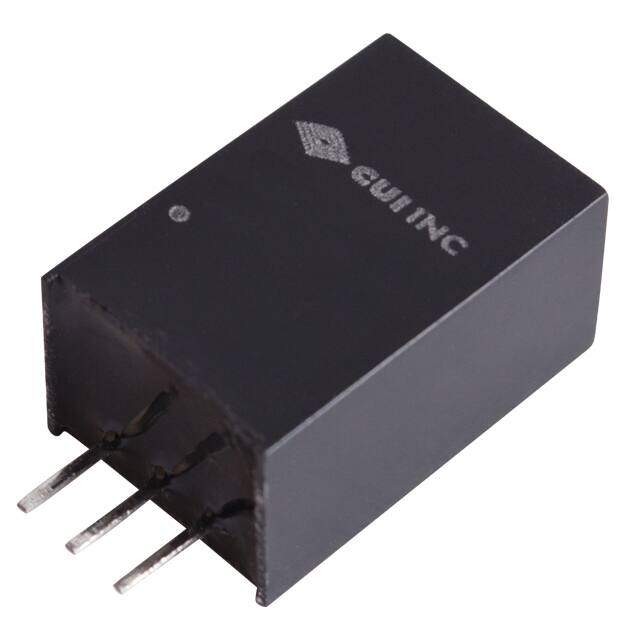

V7806-2000
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC REG 6.5V 2000MA
PDF
/
Buying Options
Total Price: USD $10.15
Unit Price: USD $10.14568
≥1 USD $10.14568
≥10 USD $9.571399
≥100 USD $9.02962
≥500 USD $8.518513
≥1000 USD $8.036331
Inventory: 981
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 9mm
Height 17.526mm
Technical
Isolation Non-Isolated
Current - Output 1 2A
Output Power 13W
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 8.5V
Max Output Current 2A
Output Voltage 6.5V
Voltage - Input (Max) 18V
Efficiency 92%
Number of Outputs 1
JESD-30 Code R-PSMA-T3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 13W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.45Lx0.35W x 0.69 H 11.5mmx9.0mmx17.5mm
Series V78-2000
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
