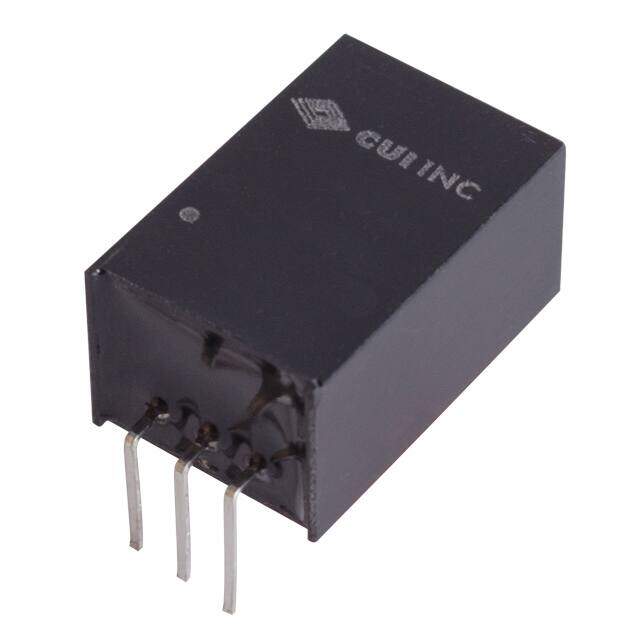

V7806-1000R
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
V78-1000 Series 6.5 V 1 A Single Output Non-Isolated Switching Regulator
PDF
/
Buying Options
Total Price: USD $5.59
Unit Price: USD $5.587899
≥1 USD $5.587899
≥10 USD $5.271604
≥100 USD $4.973208
≥500 USD $4.691713
≥1000 USD $4.426141
Inventory: 1146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series V78-1000
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Max Power Dissipation 6.5W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-PSMA-P3
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 32V
Output Voltage 6.5V
Max Output Current 1A
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Power 6.5W
Current - Output 1 1A
Isolation Non-Isolated
Dimensions
Height 8.89mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
