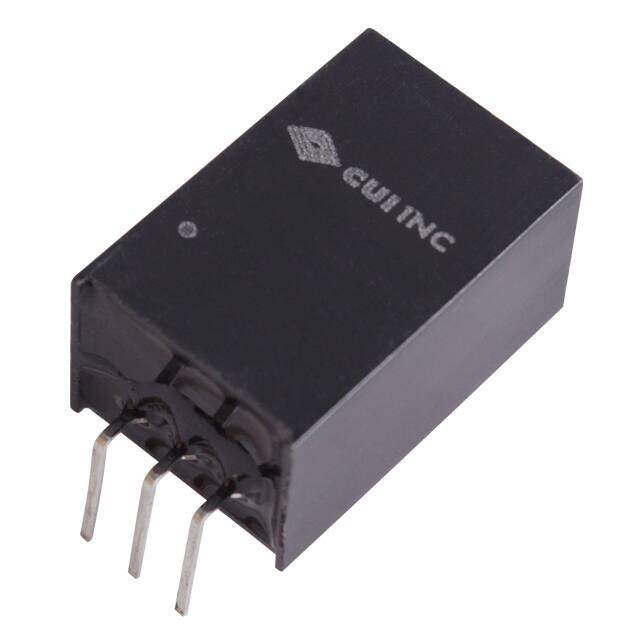

V7805-2000R
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 10W
PDF
/
Buying Options
Total Price: USD $8.63
Unit Price: USD $8.62925
≥1 USD $8.62925
≥10 USD $8.1408
≥100 USD $7.68
≥500 USD $7.24528
Inventory: 2381
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series V78-2000
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Linear Regulator Replacement
Applications ITE (Commercial)
Max Power Dissipation 10W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Efficiency 91%
Voltage - Input (Max) 18V
Output Voltage 5V
Max Output Current 2A
Voltage - Input (Min) 7V
Output Power 10W
Current - Output 1 2A
Isolation Non-Isolated
Dimensions
Height 8.89mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
