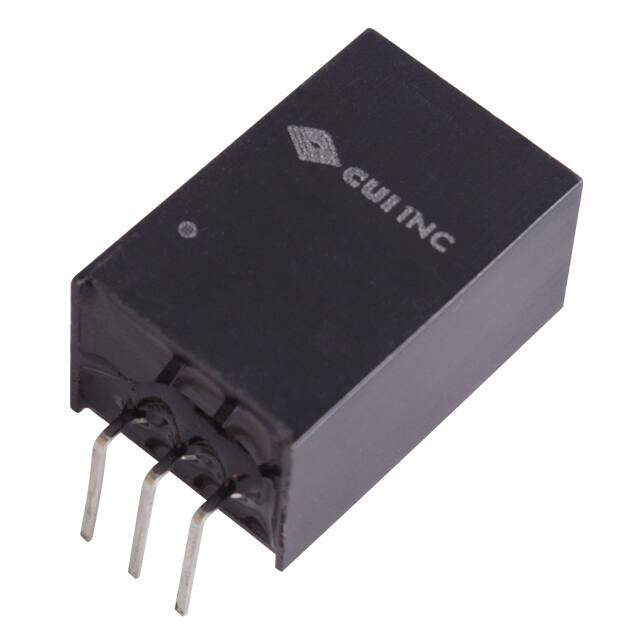

V7803-2000R
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 6.6W
PDF
/
Buying Options
Total Price: USD $9.22
Unit Price: USD $9.22476
≥1 USD $9.22476
≥10 USD $8.7026
≥100 USD $8.21
≥500 USD $7.74528
≥1000 USD $7.30687
Inventory: 1522
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series V78-2000
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Max Power Dissipation 6.6W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-PSIP-T3
Number of Outputs 1
Efficiency 87%
Voltage - Input (Max) 18V
Output Voltage 3.3V
Max Output Current 2A
Voltage - Input (Min) 4.75V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Power 6.6W
Current - Output 1 2A
Total Power Output-Max 6.5W
Isolation Non-Isolated
Dimensions
Height 8.89mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
