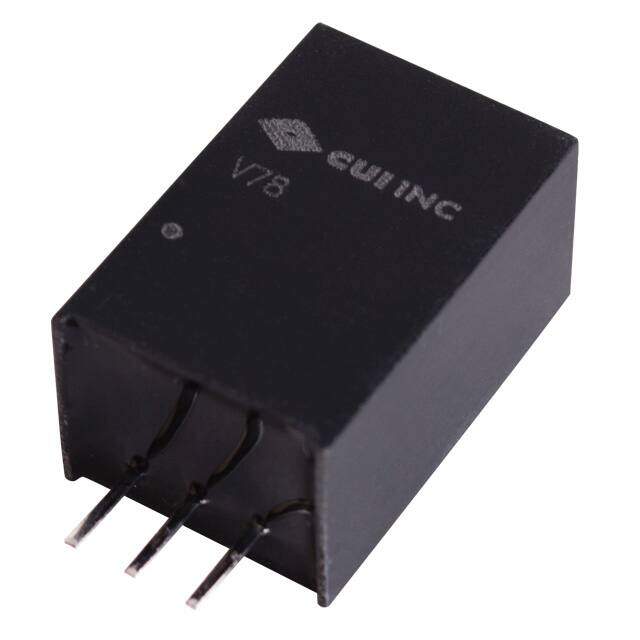

V7803-1500
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 4.95W
PDF
/
Buying Options
Total Price: USD $7.88
Unit Price: USD $7.876
≥1 USD $7.876
≥10 USD $7.81616
≥100 USD $7.75632
≥500 USD $7.398002
≥1000 USD $6.681998
Inventory: 203
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 9mm
Height 17.526mm
Technical
Isolation Non-Isolated
Current - Output 1 1.5A
Output Power 5W
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 4.75V
Max Output Current 1.5A
Output Voltage 3.3V
Voltage - Input (Max) 18V
Efficiency 91%
Number of Outputs 1
JESD-30 Code R-PSMA-T3
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 4.95W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.45Lx0.35W x 0.69 H 11.5mmx9.0mmx17.5mm
Series V78-1500
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
