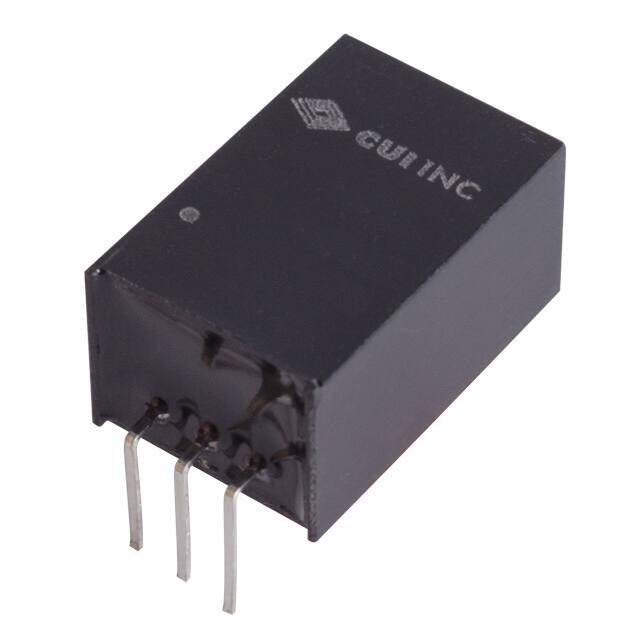

V7803-1000R image
Favorite
V7803-1000R image
Favorite

V7803-1000R

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 3.3V 3.3W
PDF
/
Buying Options
Total Price: USD $7.95
Unit Price: USD $7.9464
≥1 USD $7.9464
≥10 USD $7.88832
≥100 USD $7.82848
≥500 USD $7.4668
≥1000 USD $6.744197
≥3000 USD $6.623769
Inventory: 1078
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 8.89mm

Technical

Isolation Non-Isolated
Current - Output 1 1A
Output Power 3.3W
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 4.75V
Max Output Current 1A
Output Voltage 3.3V
Voltage - Input (Max) 28V
Efficiency 90%
Number of Outputs 1
JESD-30 Code R-PSMA-P3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3.3W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Series V78-1000
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 3-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
