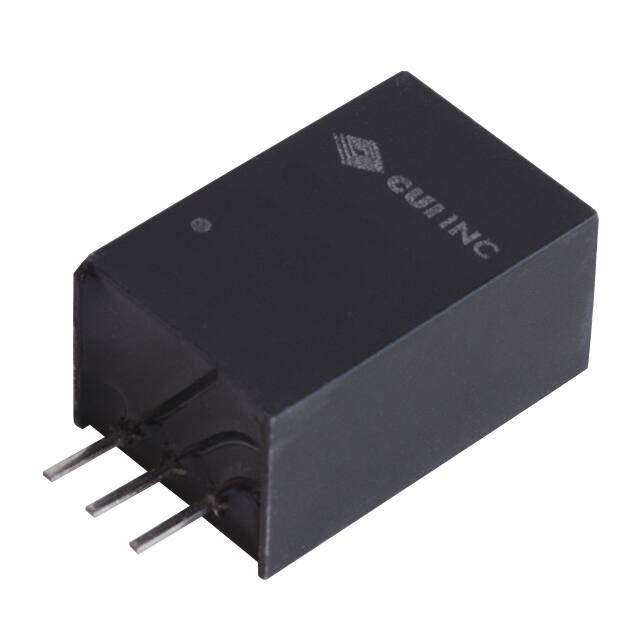

V7803-1000
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 3.3W
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.279526
≥1 USD $1.279526
≥10 USD $1.207097
≥100 USD $1.13877
≥500 USD $1.074313
≥1000 USD $1.013504
Inventory: 8959
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 9mm
Height 17.526mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 450kHz
Current - Output 1 1A
Protections OUTPUT OVER CURRENT
Output Power 3.3W
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 4.75V
Max Output Current 1A
Output Voltage 3.3V
Voltage - Input (Max) 28V
Efficiency 90%
Number of Outputs 1
JESD-30 Code R-PSMA-P3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3.3W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.45Lx0.35W x 0.69 H 11.5mmx9.0mmx17.5mm
Series V78-1000
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
