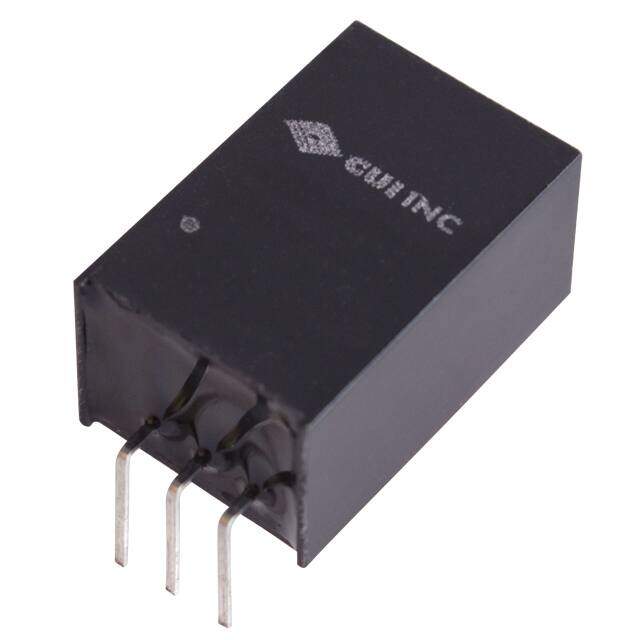

V7802-1500R
RoHS
/
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERT DC/DC REG 2.5V 1500MA RA
PDF
/
Inventory: 5533
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series V78-1500
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Feature OTP, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Type Linear Regulator Replacement
Applications ITE (Commercial)
Max Power Dissipation 3.75W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T3
Number of Outputs 1
Efficiency 88%
Voltage - Input (Max) 18V
Output Voltage 2.5V
Max Output Current 1.5A
Voltage - Output 1 2.5V
Voltage - Input (Min) 4.75V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Power 3.75W
Isolation Non-Isolated
Dimensions
Height 8.89mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
