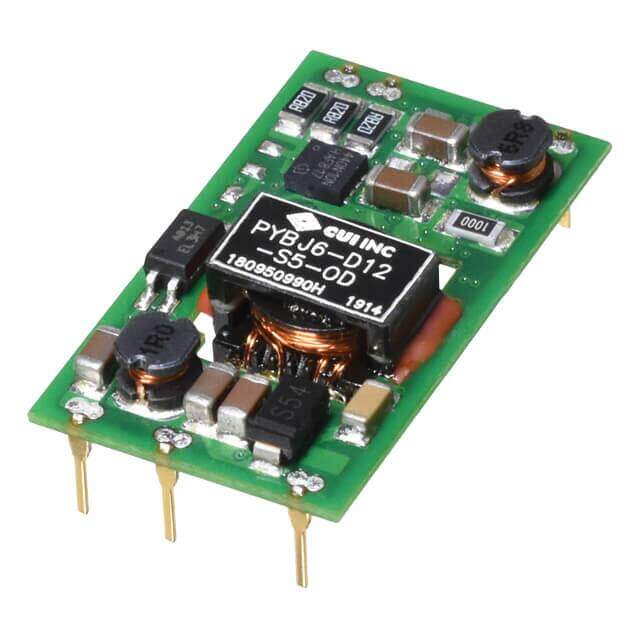

PYBJ6-D12-S5-OD
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC ISOLATED, 6 W, 9-18 VDC IN
PDF
/
Buying Options
Total Price: USD $7.94
Unit Price: USD $7.9376
≥1 USD $7.9376
≥10 USD $7.87424
≥100 USD $7.81352
Inventory: 76
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - Output (Max) 1.2A
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 81%
Number of Outputs 1
Power (Watts) 6W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 1.24Lx0.71W x 0.24 H 31.6mmx18.1mmx6.1mm
Series PYBJ6 (6W)
Operating Temperature -40°C~85°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
