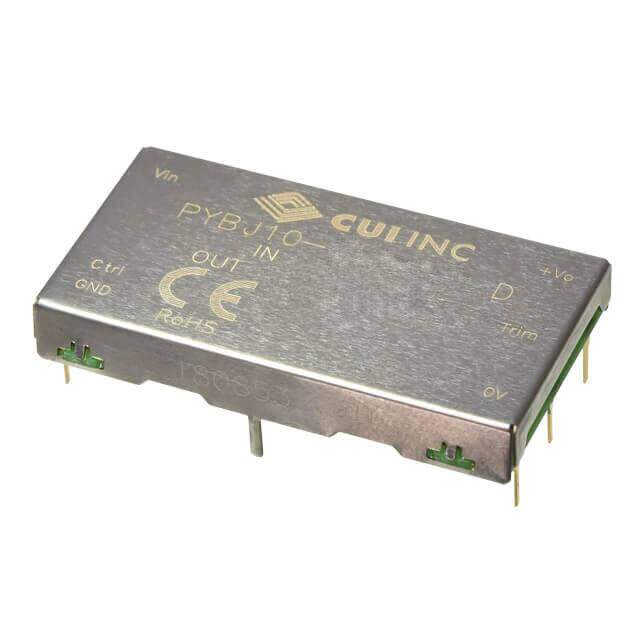

PYBJ10-Q24-S5-D
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC ISOLATED, 10 W, 9-36 VDC I
PDF
/
Buying Options
Total Price: USD $14.69
Unit Price: USD $14.6872
≥1 USD $14.6872
≥10 USD $14.57632
≥100 USD $14.462404
≥500 USD $13.5586
Inventory: 81
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - Output (Max) 2A
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 84%
Number of Outputs 1
Power (Watts) 10W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 1.59Lx0.87W x 0.27 H 40.2mmx22.0mmx6.8mm
Series PYBJ10 (10W)
Operating Temperature -40°C~85°C With Derating
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
