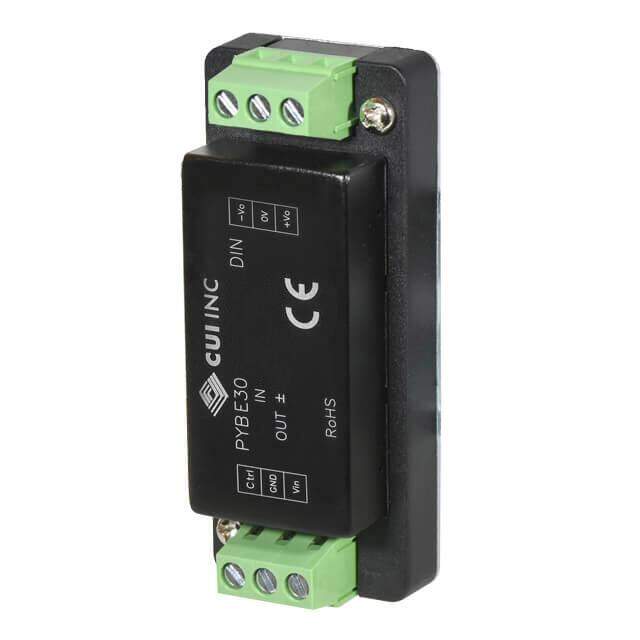

PYBE30-Q24-D12-DIN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC-DC ISOLATED, 30 W, 9-36 VDC
PDF
/
Buying Options
Total Price: USD $34.13
Unit Price: USD $34.1264
≥1 USD $34.1264
≥10 USD $33.86592
Inventory: 99
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Output 2 -12V
Current - Output (Max) 1.25A 1.25A
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 89%
Approval Agency CE, cURus
Number of Outputs 2
Power (Watts) 30W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 2.99Lx1.24W x 0.87 H 76.0mmx31.5mmx22.2mm
Series PYBE30 (30W)
Packaging Tray
Operating Temperature -40°C~80°C With Derating
Physical
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
