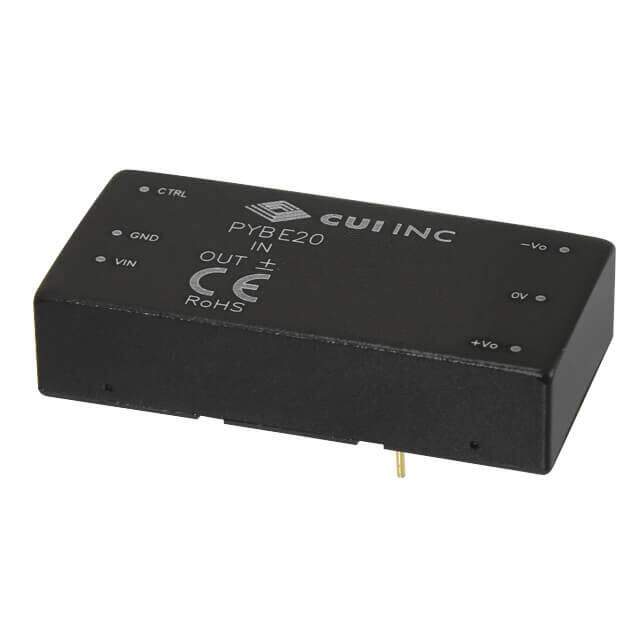

PYBE20-Q24-D9
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC ISOLATED, 20 W, 9-36 VDC
PDF
/
Inventory: 7220
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 50.8mm
Technical
Control Mode VOLTAGE-MODE
Voltage - Output 2 -9V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Current - Output (Max) 1.111A 1.111A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Output Voltage 9V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 88%
Approval Agency UL, EN, IEC
Number of Outputs 2
JESD-30 Code R-XDMA-P6
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 20W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.00Lx1.00W x 0.46 H 50.8mmx25.4mmx11.8mm
Series PYBE20 (20W)
Operating Temperature -40°C~85°C With Derating
Physical
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
