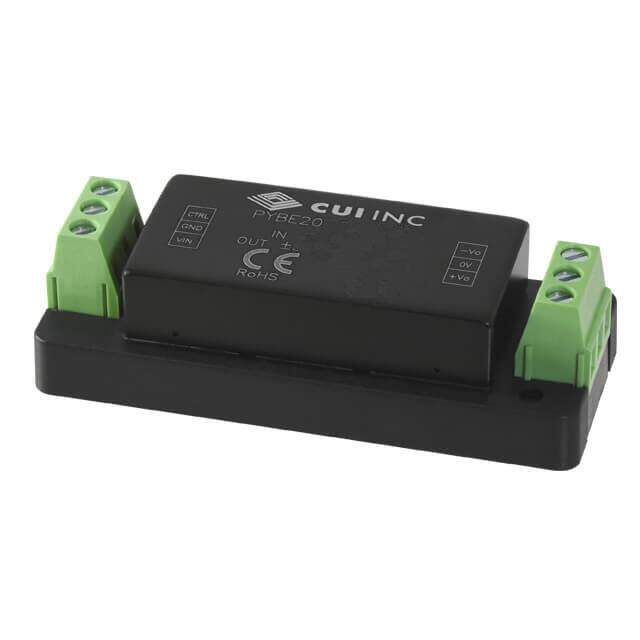

PYBE20-Q24-D12-T

CUI Inc.
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description DC-DC ISOLATED, 20 W, 9-36 VDC
PDF
/
Buying Options
Total Price: USD $34.48
Unit Price: USD $34.4784
≥1 USD $34.4784
≥10 USD $34.21088
Inventory: 58
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Chassis Mount
Surface Mount YES

Technical

Operating Temperature -40°C~85°C With Derating
Series PYBE20 (20W)
Size / Dimension 2.99Lx1.24W x 0.83 H 76.0mmx31.5mmx21.2mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 20W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XDMA-X6
Number of Outputs 2
Approval Agency CE, cURus
Efficiency 88%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 834mA 834mA
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2 -12V
Control Mode VOLTAGE-MODE

Compliance

RoHS Status RoHS Compliant
