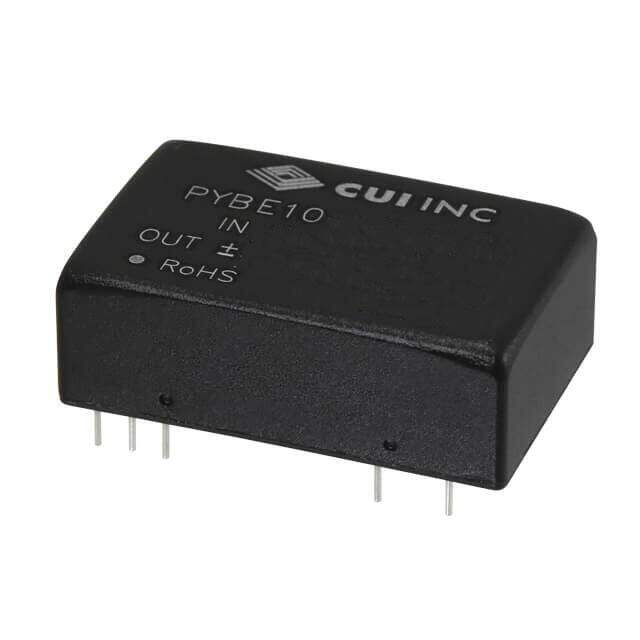

PYBE10-Q48-D5
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC ISOLATED 10 W 18-75 VDC
PDF
/
Inventory: 973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 9 Leads
Technical
Operating Temperature -40°C~85°C With Derating
Series PYBE10 (10W)
Size / Dimension 1.26Lx0.79W x 0.43 H 32.0mmx20.0mmx10.8mm
Feature Remote On/Off, OCP, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 10W
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Current - Output (Max) 1A 1A
Voltage - Output 2 -5V
Compliance
RoHS Status RoHS Compliant
