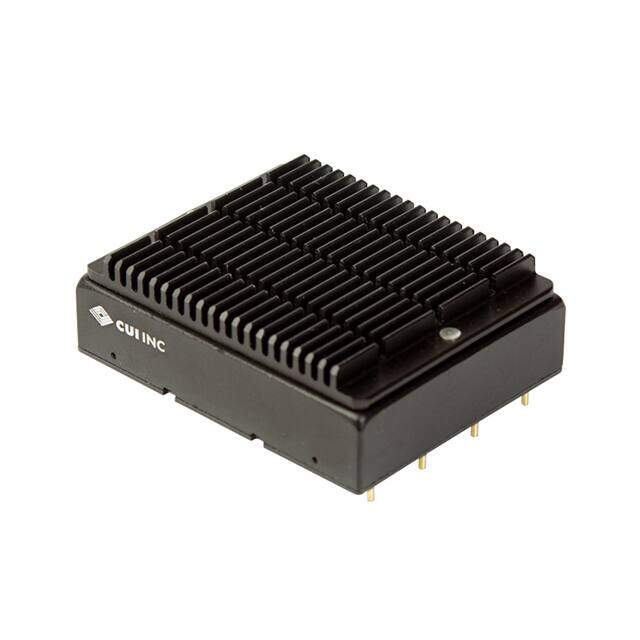

PYB30-Q24-D15-H image
Favorite
PYB30-Q24-D15-H image
Favorite

PYB30-Q24-D15-H

CUI Inc.
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-15V 30W
PDF
/
Inventory: 6775
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Weight 69.99999g

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series PYB30 (30W)
Size / Dimension 2.00Lx1.60W x 0.64 H 50.8mmx40.6mmx16.3mm
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 30W
Number of Outputs 2
Efficiency 90%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Max Output Current 1A
Voltage - Output 1 15V
Voltage - Input (Min) 9V
Current - Output (Max) 1A 1A
Output Power 30W
Control Features Enable, Active High
Voltage - Output 2 -15V

Dimensions

Height 16.256mm

Compliance

RoHS Status RoHS Compliant
