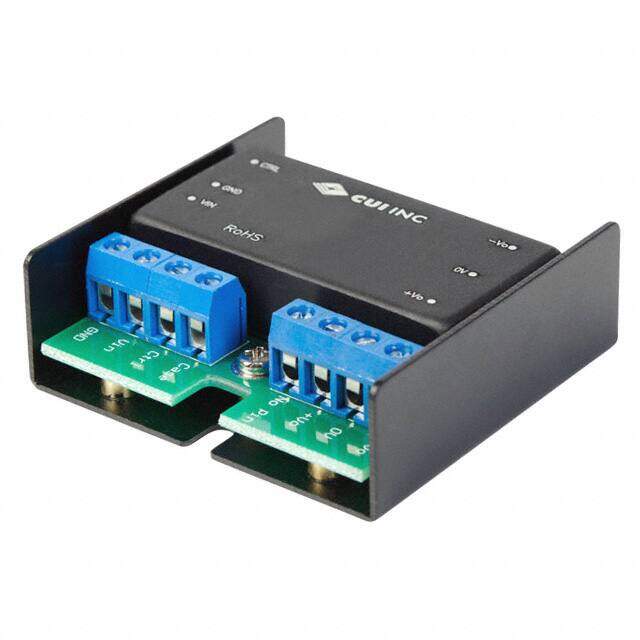

PYB20-Q48-S5-U
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 5V 20W UFRM
PDF
/
Buying Options
Total Price: USD $44.97
Unit Price: USD $44.968092
≥1 USD $44.968092
≥10 USD $42.422735
≥100 USD $40.021447
≥500 USD $37.756085
≥1000 USD $35.618945
Inventory: 1341
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 54.99mm
Length 52.32mm
Height 19.05mm
Technical
Current - Output 1 4A
Output Power 20W
Current - Output (Max) 4A
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Voltage - Input (Max) 75V
Efficiency 90%
Approval Agency EN, IEC
Number of Outputs 1
Max Power Dissipation 20W
Power (Watts) 20W
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 2.16Lx2.06W x 0.75 H 54.9mmx52.3mmx19.1mm
Series PYB20-U (20W)
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 28.349523g
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
