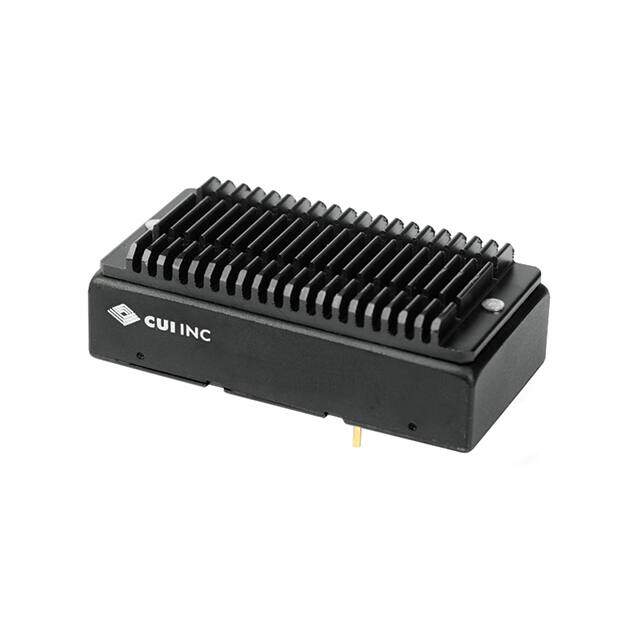

PYB20-Q48-D15-H
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 20W
PDF
/
Inventory: 1442
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 11.938mm
Technical
Voltage - Output 2 -15V
Control Features Enable, Active High
Output Power 20W
Current - Output (Max) 667mA 667mA
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Max Output Current 667mA
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 89%
Number of Outputs 2
Max Power Dissipation 20W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.47 H 50.8mmx25.4mmx11.8mm
Series PYB20 (20W)
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Weight 36.00001g
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
