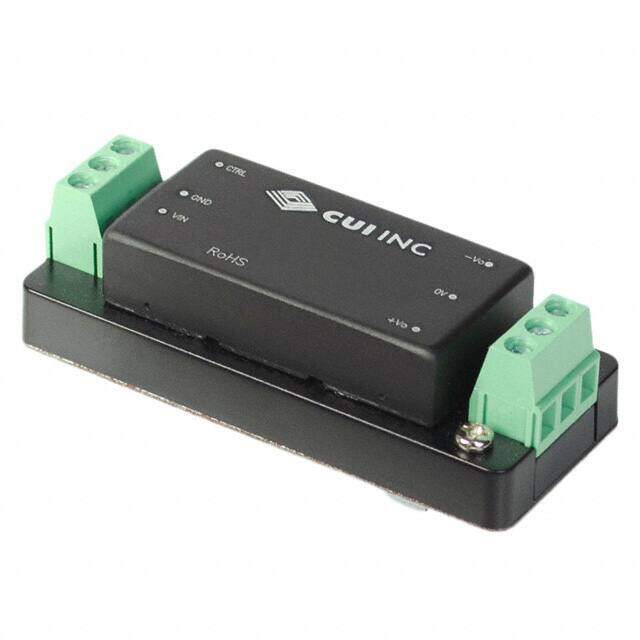

PYB20-Q24-S3-H-DIN
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
Isolated DC/DC Converters Isolated DC-DC Cnvrt
PDF
/
Inventory: 1764
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 29.718mm
Technical
Current - Output 1 5A
Output Power 16.5W
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Voltage - Input (Max) 36V
Efficiency 84%
Approval Agency EN, IEC
Number of Outputs 1
Max Power Dissipation 20W
Power (Watts) 20W
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Size / Dimension 2.99Lx1.24W x 1.17 H 76.0mmx31.5mmx29.7mm
Series PYB20-DIN (20W)
Published 2016
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Weight 77.999999g
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 14 Weeks
