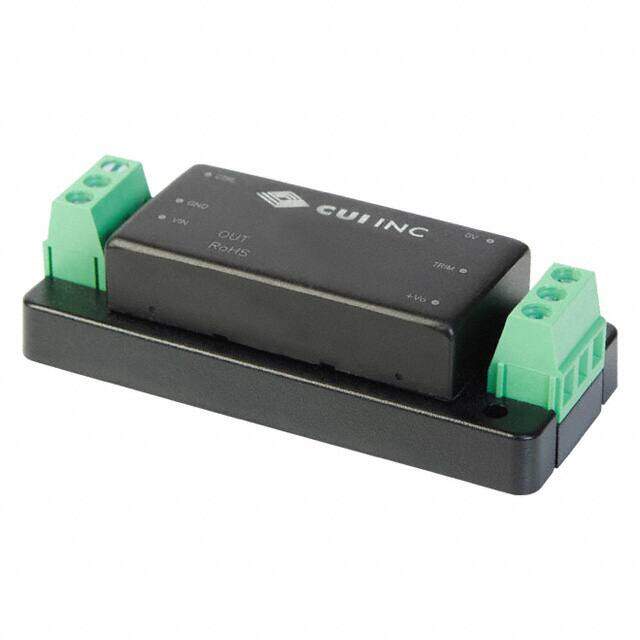

PYB20-Q24-D5-T image
Favorite
PYB20-Q24-D5-T image
Favorite

PYB20-Q24-D5-T

CUI Inc.
RoHS
RoHS RoHS compliant
Package Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description DC/DC CONVERTER +/-5V 20W CM
PDF
/
Inventory: 2701
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 21.336mm

Technical

Current - Output 2 2A
Current - Output 1 2A
Voltage - Output 2 -5V
Output Power 20W
Current - Output (Max) 2A 2A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 36V
Efficiency 86%
Approval Agency EN, IEC
Number of Outputs 2
JESD-30 Code R-MXMA-X6
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 20W
Type Enclosed
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 2.99Lx1.24W x 0.84 H 76.0mmx31.5mmx21.2mm
Series PYB20-T (20W)
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 49.999997g
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount

Supply Chain

Factory Lead Time 13 Weeks
