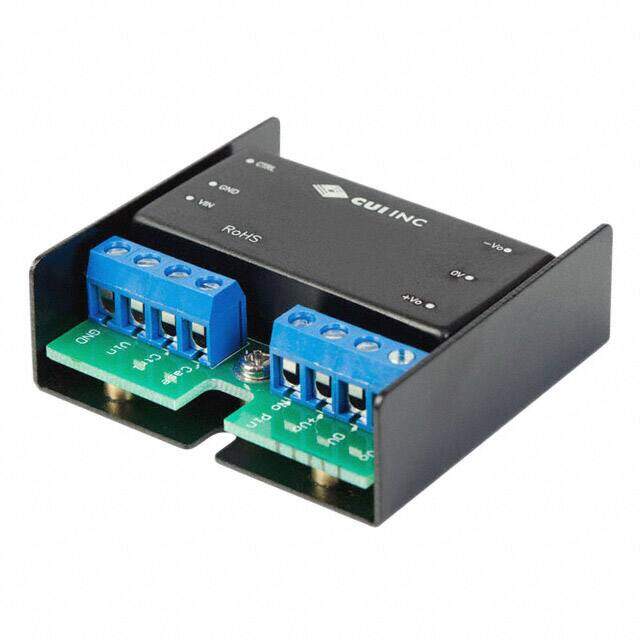

PYB15-Q48-D15-U
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER +/-15V 15W UFRM
PDF
/
Inventory: 5961
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Module
Weight 28.349523g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2016
Series PYB15-U (15W)
Size / Dimension 2.16Lx2.06W x 0.75 H 54.9mmx52.3mmx19.1mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Max Power Dissipation 15W
Number of Outputs 2
Approval Agency EN, IEC
Efficiency 89%
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Current - Output (Max) 500mA 500mA
Output Power 15W
Voltage - Output 2 -15V
Dimensions
Height 19.05mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
