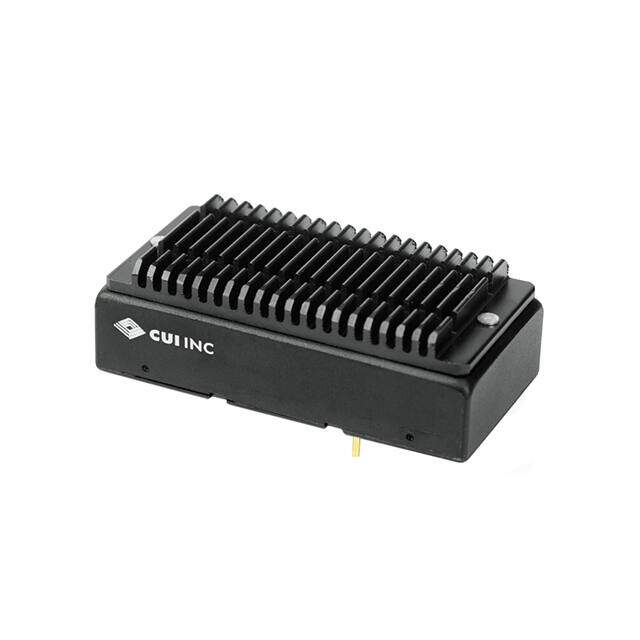

PYB15-Q24-S3-H
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 15W
PDF
/
Inventory: 6825
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 16.256mm
Technical
Control Features Enable, Active High
Output Power 15W
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Max Output Current 4A
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 87%
Number of Outputs 1
Max Power Dissipation 13W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.64 H 50.8mmx25.4mmx16.3mm
Series PYB15 (15W)
Published 2015
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Weight 36.00001g
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
