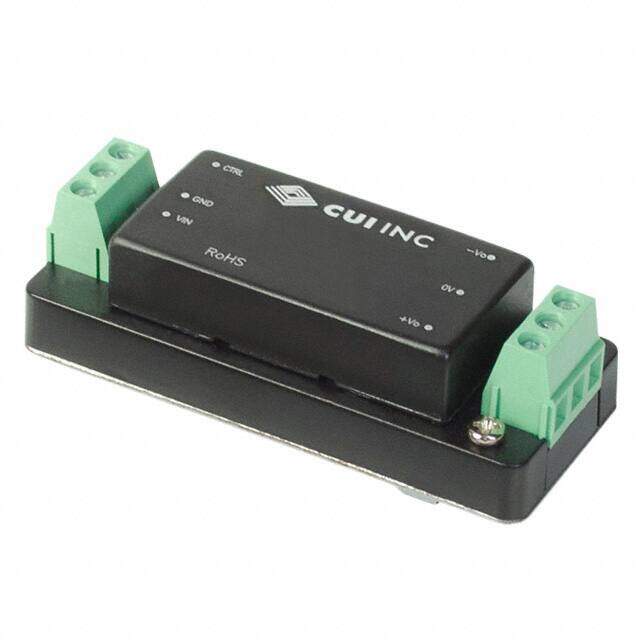

PYB15-Q24-D5-DIN
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER +/-5V 15W DIN
PDF
/
Buying Options
Total Price: USD $44.78
Unit Price: USD $44.781505
≥1 USD $44.781505
≥10 USD $42.246712
≥100 USD $39.855384
≥500 USD $37.599422
≥1000 USD $35.471142
Inventory: 1176
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 22.098mm
Technical
Current - Output 2 1.5A
Current - Output 1 1.5A
Voltage - Output 2 -5V
Output Power 15W
Current - Output (Max) 1.5A 1.5A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 36V
Efficiency 84%
Approval Agency EN, IEC
Number of Outputs 2
JESD-30 Code R-MXFM-X6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 15W
Type Enclosed
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 2.99Lx1.24W x 0.87 H 76.0mmx31.5mmx22.2mm
Series PYB15-DIN (15W)
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 69.99999g
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 13 Weeks
