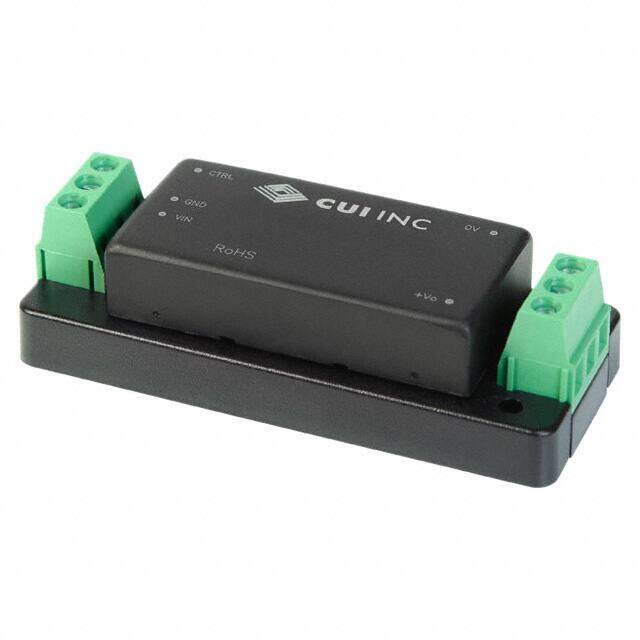

PYB10-Q48-S5-T
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 5V 10W CM
PDF
/
Buying Options
Total Price: USD $31.58
Unit Price: USD $31.575129
≥1 USD $31.575129
≥10 USD $29.787856
≥100 USD $28.101753
≥500 USD $26.511085
≥1000 USD $25.010463
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Module
Weight 43.999991g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2016
Series PYB10-T (10W)
Size / Dimension 2.99Lx1.24W x 0.84 H 76.0mmx31.5mmx21.2mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Enclosed
Max Power Dissipation 10W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-MXMA-X6
Number of Outputs 1
Approval Agency EN, IEC
Efficiency 82%
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Power 10W
Current - Output 1 2A
Dimensions
Height 21.336mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
