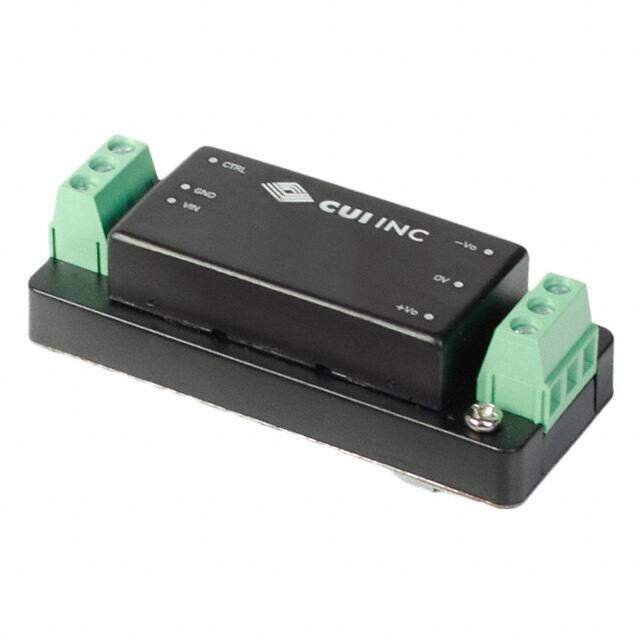

PYB10-Q48-D15-DIN
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER +/-15V 10W DIN
PDF
/
Buying Options
Total Price: USD $34.22
Unit Price: USD $34.21934
≥1 USD $34.21934
≥10 USD $32.282395
≥100 USD $30.455088
≥500 USD $28.731221
≥1000 USD $27.104929
Inventory: 1136
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 22.098mm
Technical
Current - Output 2 333mA
Total Power Output-Max 1W
Current - Output 1 333mA
Voltage - Output 2 -15V
Output Power 10W
Current - Output (Max) 333mA 333mA
Trim/Adjustable Output NO
Input Voltage-Nom 18V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 75V
Efficiency 86%
Approval Agency EN, IEC
Number of Outputs 2
JESD-30 Code R-XXFM-X6
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 10W
Type Enclosed
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 2.99Lx1.24W x 0.87 H 76.0mmx31.5mmx22.2mm
Series PYB10-DIN (10W)
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 64.000012g
Package / Case Module
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 13 Weeks
