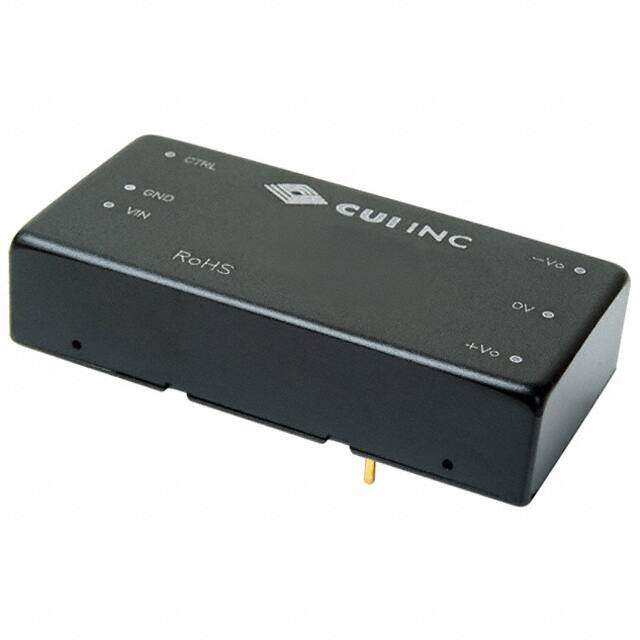

PYB10-Q24-D5 image
Favorite
PYB10-Q24-D5 image
Favorite

PYB10-Q24-D5

CUI Inc.
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description PYB10 Series 10 WDual Output ±5 Vdc Encapsulated DC-DC Converter
PDF
/
Buying Options
Total Price: USD $26.23
Unit Price: USD $26.23176
≥1 USD $26.23176
≥10 USD $24.746948
≥100 USD $23.346176
≥500 USD $22.024694
≥1000 USD $20.778011
Inventory: 5140
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Weight 21.999995g

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2016
Series PYB10 (10W)
Size / Dimension 2.00Lx1.00W x 0.47 H 50.8mmx25.4mmx11.8mm
Feature Remote On/Off, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MDMA-P6
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 5V
Max Output Current 1A
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 1A 1A
Output Power 10W
Control Features Enable, Active High
Voltage - Output 2 -5V
Current - Output 1 1A
Isolation Isolated
Current - Output 2 1A

Dimensions

Height 11.938mm
Length 50.8mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
