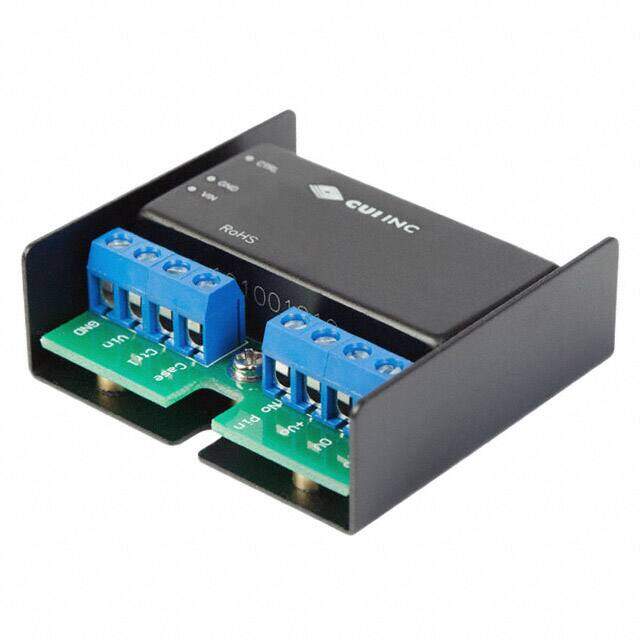

PYB10-Q24-D12-U
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER +/-12V 10W UFRM
PDF
/
Inventory: 7379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 19.05mm
Technical
Voltage - Output 2 -12V
Output Power 10W
Current - Output (Max) 416mA 416mA
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Voltage - Input (Max) 36V
Efficiency 86%
Approval Agency EN, IEC
Number of Outputs 2
Max Power Dissipation 10W
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 2.16Lx2.06W x 0.75 H 54.9mmx52.3mmx19.1mm
Series PYB10-U (10W)
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 58.000006g
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
