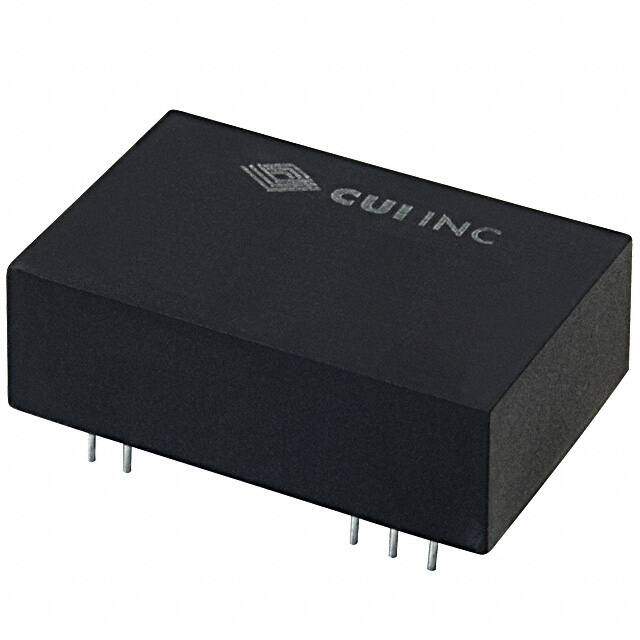

PVB3-D12-D12-D
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER +/-12V 125MA 3W
PDF
/
Buying Options
Total Price: USD $14.98
Unit Price: USD $14.9776
≥1 USD $14.9776
≥10 USD $14.86144
≥100 USD $14.74704
≥500 USD $14.51648
Inventory: 140
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 31.6mm
Height 10.16mm
Technical
Current - Output 2 -125mA
Isolation Isolated
Total Power Output-Max 3W
Current - Output 1 125mA
Voltage - Output 2 -12V
Output Power 3W
Current - Output (Max) 125mA 125mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Max Output Current 125mA
Output Voltage 12V
Voltage - Input (Max) 18V
Voltage - Isolation 3kV
Efficiency 81%
Number of Outputs 2
JESD-30 Code R-PDMA-T10
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series PVB3-D (3W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Weight 13.999987g
Package / Case 24-DIP Module, 10 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
