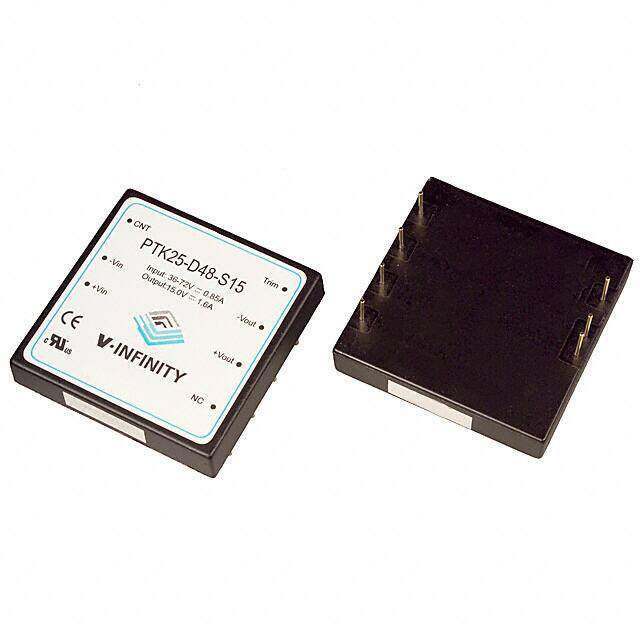

PTK25-D48-S15
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 15V OUT 24W
PDF
/
Inventory: 1160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Width 50.8mm
Length 50.8mm
Height 10.16mm
Technical
Control Features Enable, Active High
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 1.6A
Output Voltage 15V
Voltage - Input (Max) 72V
Voltage - Isolation 500V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code S-XDMA-P6
Pin Count 6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 300kHz
Reach Compliance Code compliant
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 24W
Power Rating 24W
Subcategory Other Analog ICs
Power (Watts) 25W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP, OVP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series PTK25 (25W)
Published 2006
Operating Temperature -20°C~71°C
Physical
Weight 80g
Package / Case 8-DIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
