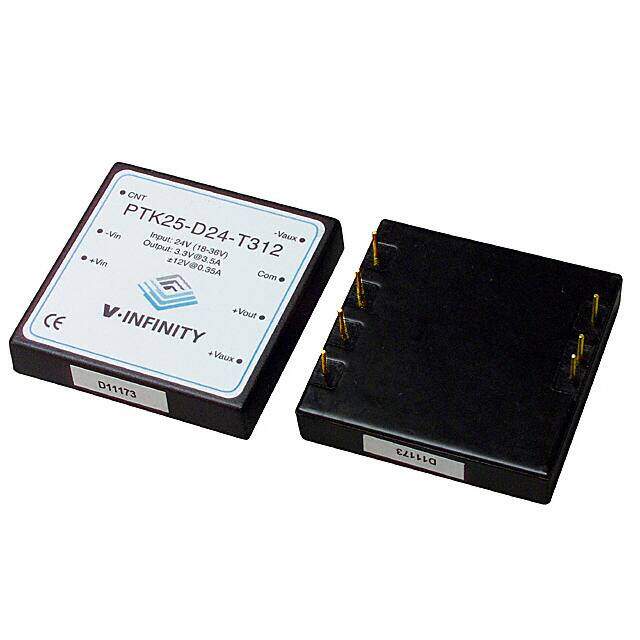

PTK25-D24-T312
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V +/-12V 25W
PDF
/
Inventory: 1126
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Technical
Operating Temperature -20°C~71°C
Published 2006
Series PTK25 (25W)
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Feature Remote On/Off, OCP, OVP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 25W
Subcategory Other Analog ICs
Power Rating 25W
Max Power Dissipation 19.95W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code compliant
Frequency 300kHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 6
JESD-30 Code S-XDMA-P6
Number of Outputs 3
Qualification Status Not Qualified
Voltage - Isolation 500V
Voltage - Input (Max) 36V
Output Voltage 3.3V
Max Output Current 3.5A
Voltage - Input (Min) 18V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 3.5A 350mA 350mA
Control Features Enable, Active High
Voltage - Output 2 12V
Voltage - Output 3 -12V
Dimensions
Height 10.16mm
Length 50.8mm
Width 50.8mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
