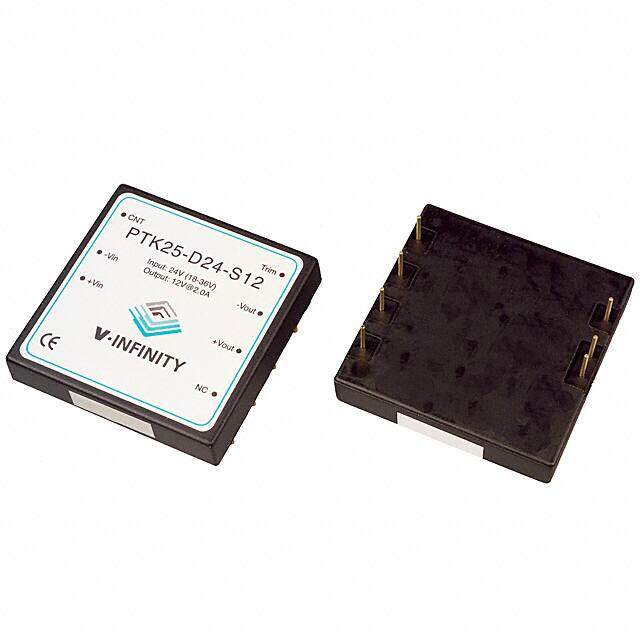

PTK25-D24-S12
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 12V OUT 24W
PDF
/
Inventory: 1202
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Width 50.8mm
Length 50.8mm
Height 10.16mm
Technical
Control Features Enable, Active High
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Max Output Current 2A
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 500V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code S-XDMA-P6
Pin Count 6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 24W
Power Rating 25W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP, OVP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series PTK25 (25W)
Published 2011
Operating Temperature -20°C~71°C
Physical
Package / Case 8-DIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
