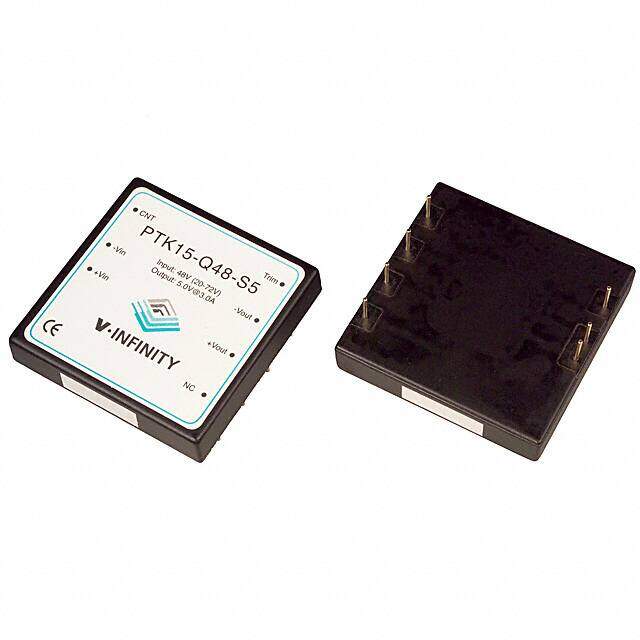

PTK15-Q48-S5
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 5V 15W
PDF
/
Inventory: 1086
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Weight 75g
Technical
Operating Temperature -20°C~71°C
Published 2006
Series PTK15 (15W)
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Feature Remote On/Off, OCP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Subcategory Other Analog ICs
Power Rating 15W
Max Power Dissipation 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Reach Compliance Code compliant
Frequency 250kHz
JESD-30 Code S-XDMA-P8
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 85%
Voltage - Isolation 500V
Voltage - Input (Max) 72V
Output Voltage 5V
Max Output Current 3A
Voltage - Input (Min) 20V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Control Features Enable, Active High
Dimensions
Height 10.16mm
Length 50.8mm
Width 50.8mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
