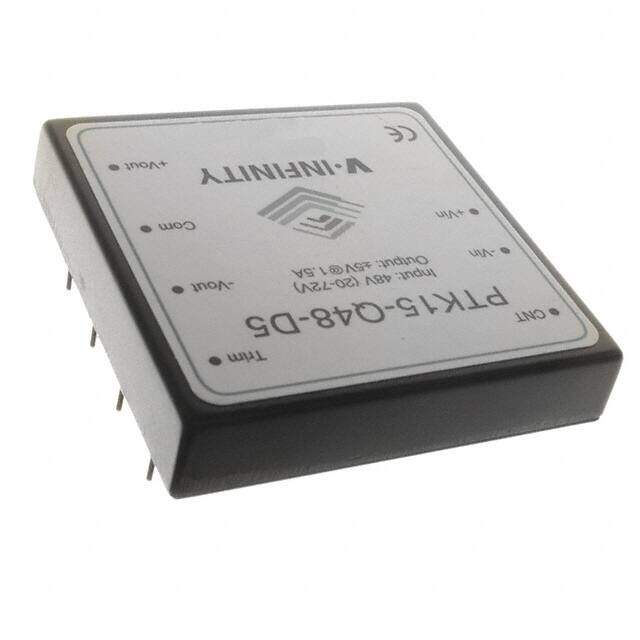

PTK15-Q48-D5
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-5V DUAL OUT
PDF
/
Buying Options
Total Price: USD $75.6
Unit Price: USD $75.604659
≥1 USD $75.604659
≥200 USD $30.167816
≥500 USD $29.159509
≥1000 USD $28.660607
Inventory: 3642
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Technical
Operating Temperature -20°C~71°C
Published 2006
Series PTK15 (15W)
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Feature Remote On/Off, OCP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 15W
Max Power Dissipation 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Reach Compliance Code compliant
Frequency 250kHz
JESD-30 Code S-XDMA-P8
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 85%
Voltage - Isolation 500V
Voltage - Input (Max) 72V
Output Voltage 5V
Max Output Current 1.5A
Voltage - Output 1 5V
Voltage - Input (Min) 20V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 1.5A 1.5A
Control Features Enable, Active High
Voltage - Output 2 -5V
Dimensions
Height 10.16mm
Length 50.8mm
Width 50.8mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
