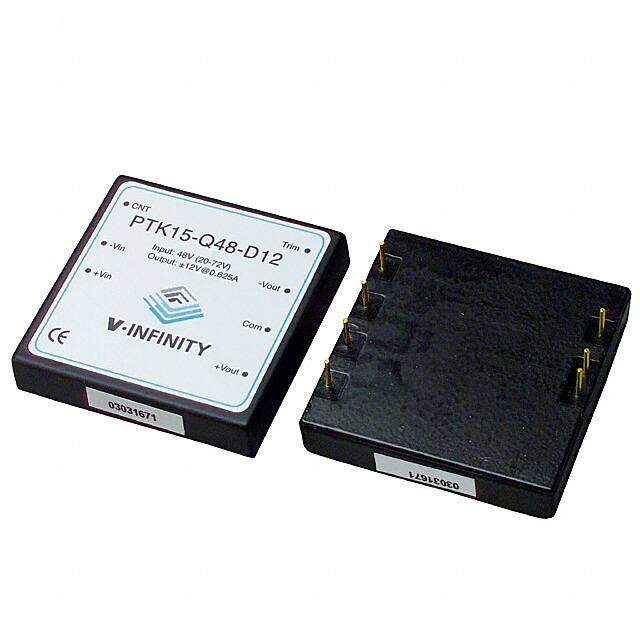

PTK15-Q48-D12
RoHS
/
Package 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-12V DUAL OUT
PDF
/
Inventory: 1234
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Width 50.8mm
Length 50.8mm
Height 10.16mm
Technical
Voltage - Output 2 -12V
Control Features Enable, Active High
Current - Output (Max) 625mA 625mA
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 20V
Voltage - Output 1 12V
Max Output Current 625mA
Output Voltage 12V
Voltage - Input (Max) 72V
Voltage - Isolation 500V
Efficiency 86%
Qualification Status Not Qualified
Number of Outputs 2
JESD-30 Code S-XDMA-P8
Frequency 250kHz
Reach Compliance Code compliant
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 15W
Power Rating 15W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Remote On/Off, OCP, OVP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series PTK15 (15W)
Published 2006
Operating Temperature -20°C~71°C
Physical
Weight 75g
Package / Case 8-DIP Module
Mounting Type Through Hole
Mount Through Hole
