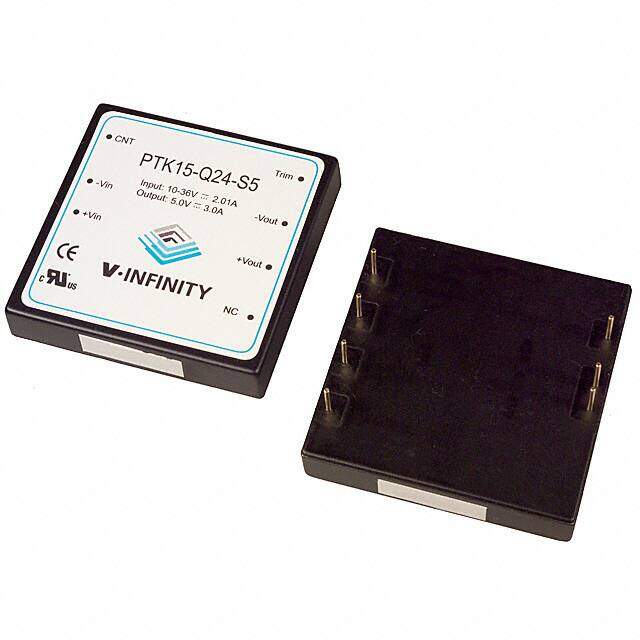

PTK15-Q24-S5 image
Favorite
PTK15-Q24-S5 image
Favorite

PTK15-Q24-S5

CUI Inc.
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONVERTER DC/DC 5V OUT 15 WATT
PDF
/
Inventory: 1195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status Non-RoHS Compliant

Dimensions

Width 50.8mm
Length 50.8mm
Height 10.16mm

Technical

Control Features Enable, Active High
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 10V
Voltage - Output 1 5V
Max Output Current 3A
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 500V
Efficiency 85%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code S-XDMA-P8
Reach Compliance Code compliant
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 15W
Power Rating 15W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Remote On/Off, OCP, OVP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series PTK15 (15W)
Published 2011
Operating Temperature -20°C~71°C

Physical

Package / Case 8-DIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
