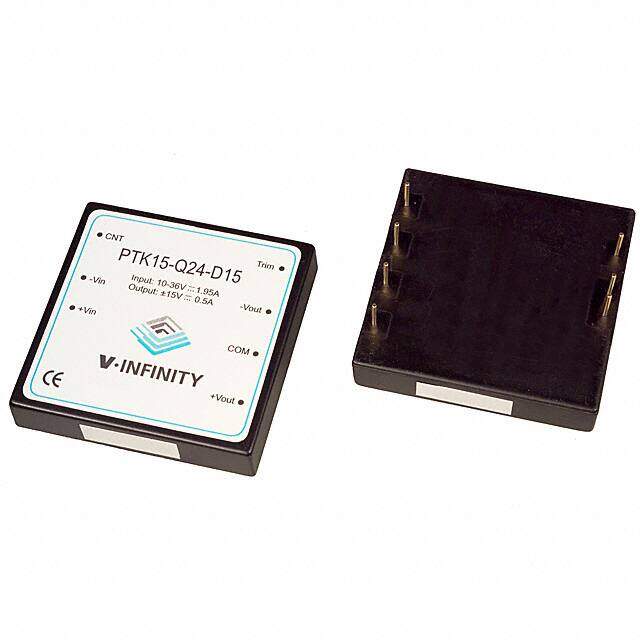

PTK15-Q24-D15
RoHS
/
Package 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-15V OUT 15W
PDF
/
Inventory: 1148
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Weight 75g
Technical
Operating Temperature -20°C~71°C
Published 2006
Series PTK15 (15W)
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Feature Remote On/Off, OCP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 15W
Max Power Dissipation 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Reach Compliance Code compliant
Frequency 250kHz
JESD-30 Code S-XDMA-P8
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 87%
Voltage - Isolation 500V
Voltage - Input (Max) 36V
Output Voltage 15V
Max Output Current 500mA
Voltage - Output 1 15V
Voltage - Input (Min) 10V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 500mA 500mA
Control Features Enable, Active High
Voltage - Output 2 -15V
Dimensions
Height 10.16mm
Length 50.8mm
Width 50.8mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
