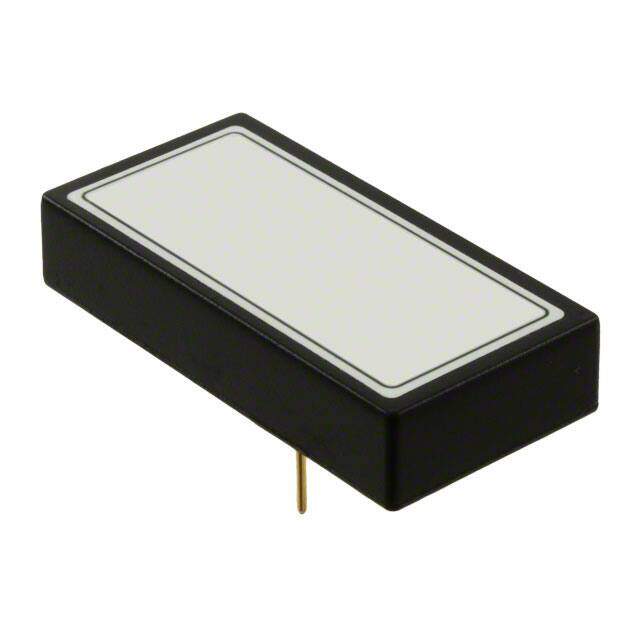

PTK10-Q48-D15
RoHS
/
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-15V OUT 10.5W
PDF
/
Buying Options
Total Price: USD $60.74
Unit Price: USD $60.73738
≥1 USD $60.73738
≥195 USD $24.234821
≥495 USD $23.424762
≥1005 USD $23.02564
Inventory: 4132
Minimum: 1
-
+
Technical Details
Technical
Output Voltage 15V
Max Output Current 350mA
Voltage - Input (Min) 20V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 350mA 350mA
Voltage - Output 2 -15V
Voltage - Input (Max) 72V
Voltage - Isolation 500V
Efficiency 83%
Qualification Status Not Qualified
Number of Outputs 2
Frequency 300kHz
Reach Compliance Code compliant
Number of Functions 1
Technology HYBRID
Max Power Dissipation 10.5W
Power Rating 10.5W
Subcategory Other Analog ICs
Power (Watts) 10W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature OCP, OVP
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series PTK10 (10W)
Published 2006
Operating Temperature -20°C~71°C
Dimensions
Height 10.16mm
Length 50.8mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
Physical
Weight 40g
Package / Case 5-DIP Module
Mounting Type Through Hole
Mount Through Hole
