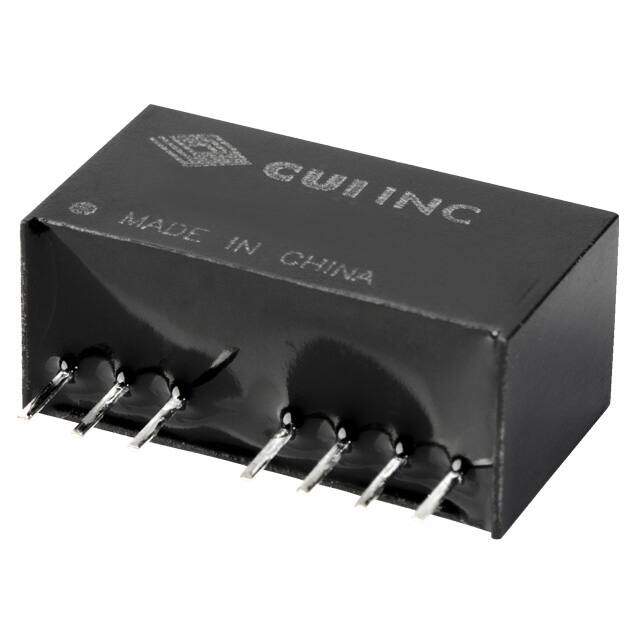

PRMC3-D24-D15-S image
Favorite
PRMC3-D24-D15-S image
Favorite

PRMC3-D24-D15-S

CUI Inc.
RoHS
RoHS RoHS compliant
Package 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-15V 3W
PDF
/
Buying Options
Total Price: USD $12.29
Unit Price: USD $12.2936
≥1 USD $12.2936
≥10 USD $12.1968
≥100 USD $12.103203
Inventory: 350
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 9.5mm

Technical

Total Power Output-Max 3W
Voltage - Output 2 -15V
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 36V
Voltage - Isolation 3kV
Efficiency 83%
Number of Outputs 2
JESD-30 Code R-PSMA-T7
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.87Lx0.37W x 0.47 H 22.0mmx9.5mmx12.0mm
Series PRMC3-S (3W)
Published 2016
Operating Temperature -40°C~105°C

Physical

Surface Mount NO
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole

Supply Chain

Factory Lead Time 10 Weeks
