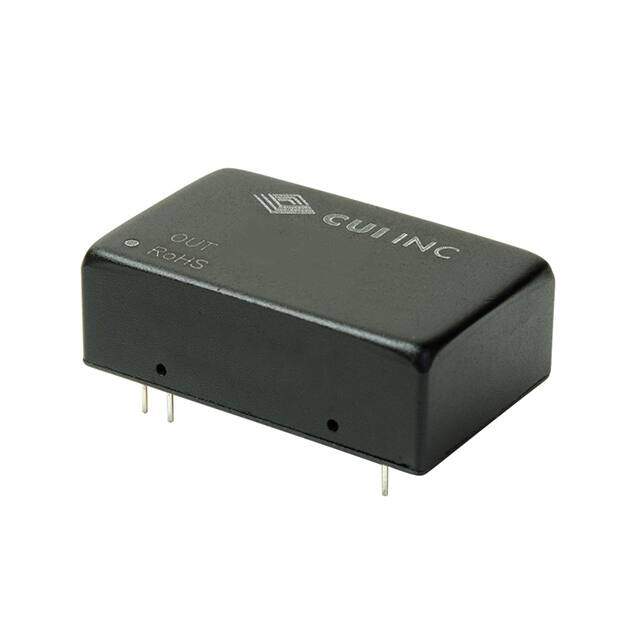

PQZ6-Q48-D5-D image
Favorite
PQZ6-Q48-D5-D image
Favorite

PQZ6-Q48-D5-D

CUI Inc.
RoHS
/
Package 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-5V 6W
PDF
/
Inventory: 8911
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Weight 13.999987g

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2015
Series PQZ6-D (6W)
Size / Dimension 1.26Lx0.79W x 0.43 H 32.0mmx20.0mmx10.8mm
Feature OCP, OVP, SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 6W
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Max Output Current 600mA
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Current - Output (Max) 600mA 600mA
Output Power 6W
Voltage - Output 2 -5V

Dimensions

Height 10.922mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
