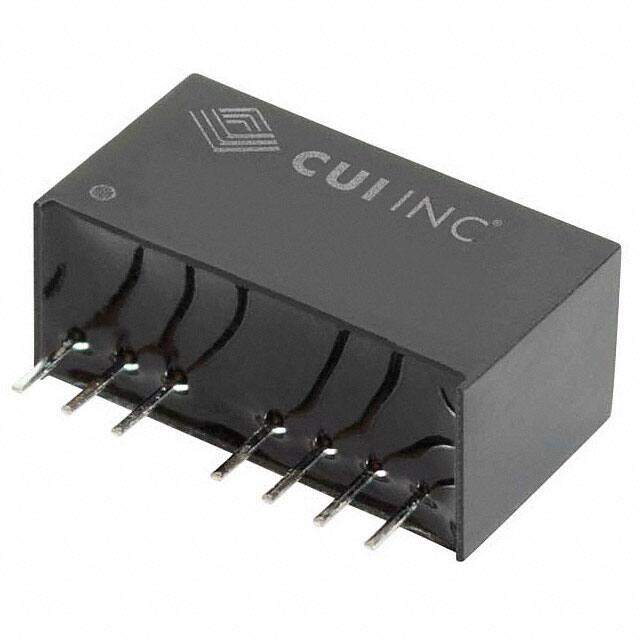

PQMC3-D24-D5-S
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER +/-5V 300MA 3W
PDF
/
Buying Options
Total Price: USD $12.23
Unit Price: USD $12.232
≥1 USD $12.232
≥10 USD $12.13872
≥100 USD $12.045598
≥500 USD $11.489597
Inventory: 135
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 9.5mm
Height 11.938mm
Technical
Current - Output 2 300mA
Isolation Isolated
Total Power Output-Max 3W
Current - Output 1 300mA
Voltage - Output 2 -5V
Output Power 1W
Current - Output (Max) 300mA 300mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Max Output Current 300mA
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 77%
Number of Outputs 2
JESD-30 Code R-PSMA-P7
Pin Count 8/7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, SCP
Size / Dimension 0.87Lx0.37W x 0.47 H 22.0mmx9.5mmx12.0mm
Series PQMC3-S (3W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Weight 4.899988g
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
