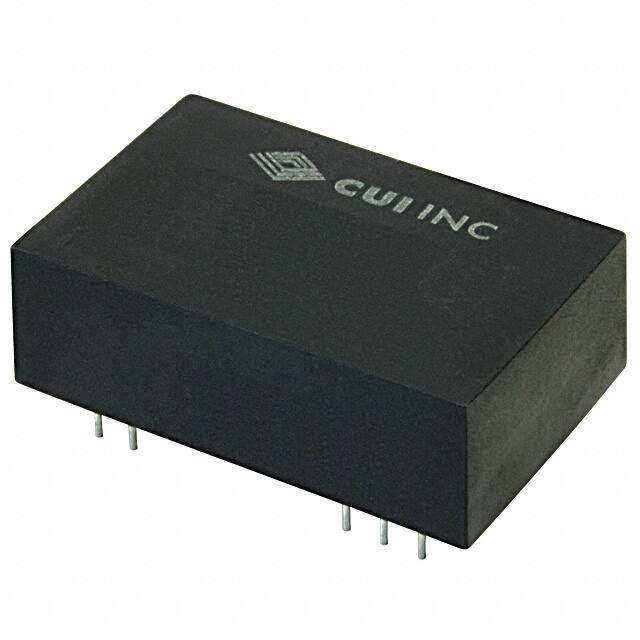

PQB3-D5-S15-D
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERT DC/DC 3W 15V 200MA OUT
PDF
/
Buying Options
Total Price: USD $12.01
Unit Price: USD $12.012
≥1 USD $12.012
≥10 USD $11.92048
≥100 USD $11.82896
≥500 USD $11.6468
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 20.3mm
Height 10.16mm
Technical
Isolation Isolated
Total Power Output-Max 3W
Output Power 3W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 15V
Max Output Current 200mA
Output Voltage 15V
Voltage - Input (Max) 9V
Voltage - Isolation 1.5kV
Efficiency 76%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series PQB3-D (3W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Weight 13.999987g
Package / Case 24-DIP Module, 10 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
