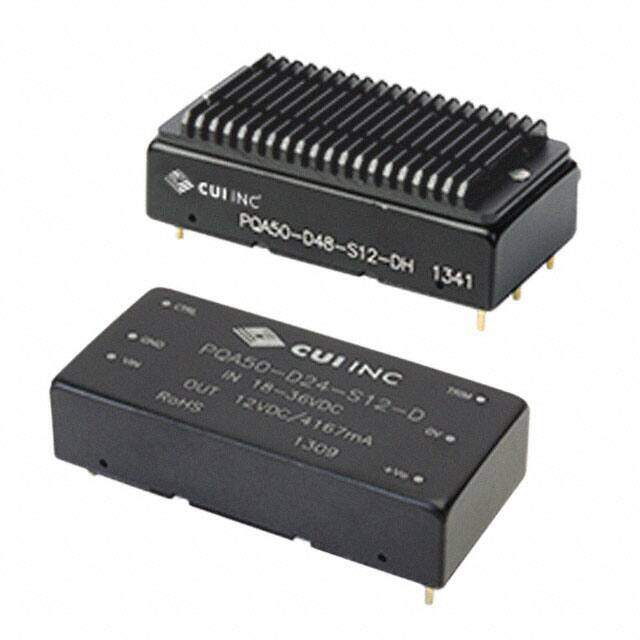

PQA50-D24-S5-DH
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 50W
PDF
/
Inventory: 9747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 25.4mm
Length 50.8mm
Height 16.256mm
Technical
Max Input Voltage 36V
Min Input Voltage 18V
Control Features Enable, Active High
Output Power 50W
Current - Output (Max) 10A
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Max Output Current 10A
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 93%
Number of Outputs 1
Max Power Dissipation 50W
Power (Watts) 50W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.64 H 50.8mmx25.4mmx16.3mm
Series PQA50-D (50W)
Published 2016
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 42.99999g
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
