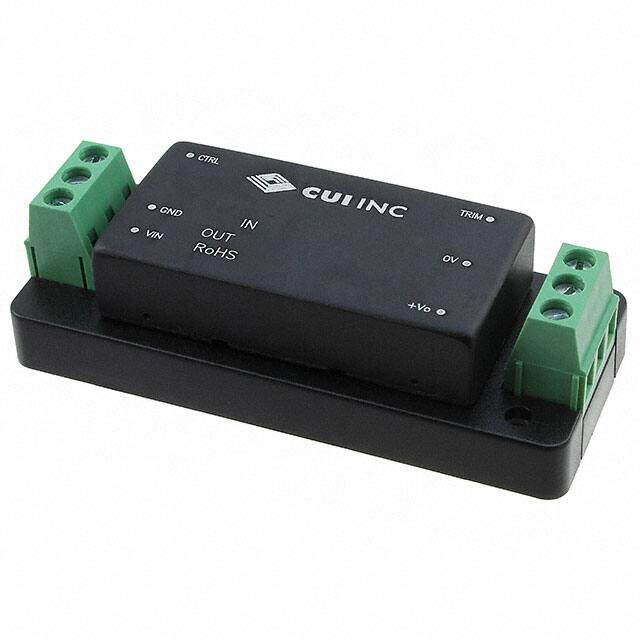

PQA50-D24-S3-T
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 3.3V 50W
PDF
/
Buying Options
Total Price: USD $106.2
Unit Price: USD $106.203146
≥1 USD $106.203146
≥10 USD $100.191655
≥100 USD $94.520426
≥500 USD $89.17021
≥1000 USD $84.122844
Inventory: 1172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 21.336mm
Technical
Total Power Output-Max 33W
Output Power 50W
Current - Output (Max) 10A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 3.3V
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 89%
Number of Outputs 1
JESD-30 Code R-MXMA-X6
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 50W
Type Enclosed
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 2.99Lx1.24W x 0.84 H 76.0mmx31.5mmx21.2mm
Series PQA50-T (50W)
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 57.000005g
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 10 Weeks
