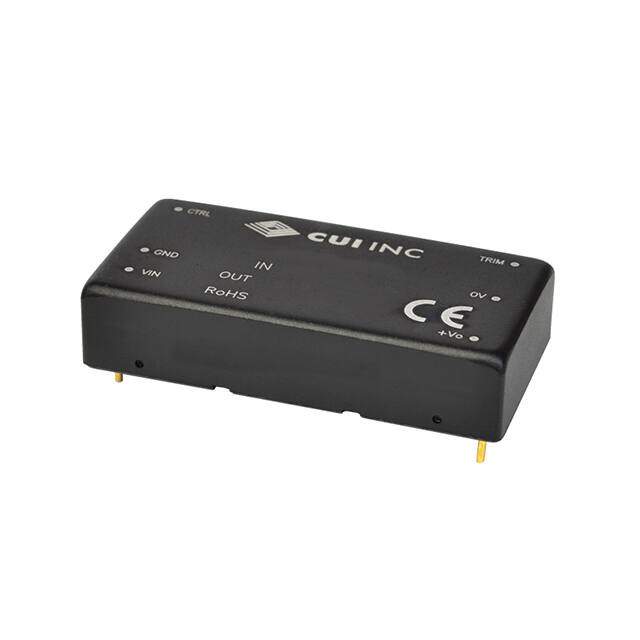

PQA30-D24-S9-D image
Favorite
PQA30-D24-S9-D image
Favorite

PQA30-D24-S9-D

CUI Inc.
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters dc-dc isolated, 30W, 18 36Vdc input, 9Vdc, 3333mA, single unregulated output, DIP
PDF
/
Inventory: 4956
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 25.4mm
Length 50.8mm
Height 11.938mm

Technical

Current - Output 1 3.333A
Control Features Enable, Active High
Output Power 30W
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 9V
Max Output Current 3.33A
Output Voltage 9V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 88%
Number of Outputs 1
JESD-30 Code R-MDMA-P6
Time@Peak Reflow Temperature-Max (s) 10
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.00Lx1.00W x 0.47 H 50.8mmx25.4mmx11.8mm
Series PQA30-D (30W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Weight 21.999995g
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
