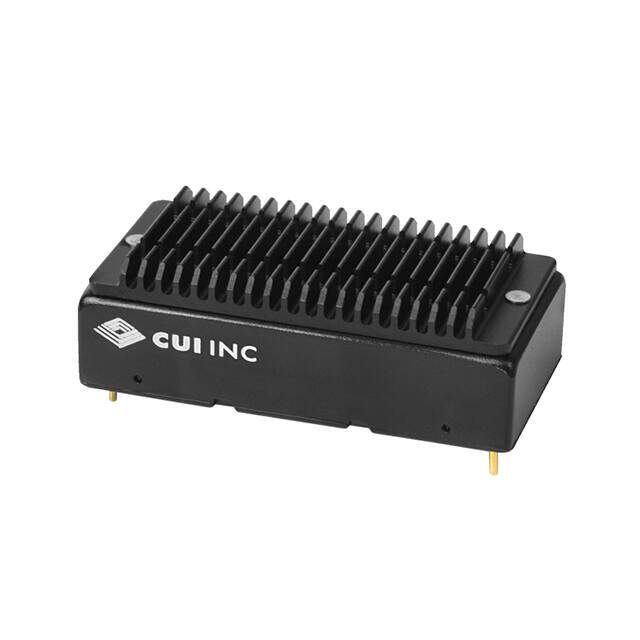

PQA30-D24-S5-DH image
Favorite
PQA30-D24-S5-DH image
Favorite

PQA30-D24-S5-DH

CUI Inc.
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC/DC CONVERT 30W 5V OUTPUT DIP
PDF
/
Inventory: 3117
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 25.4mm
Length 50.8mm
Height 16.256mm

Technical

Control Features Enable, Active High
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Max Output Current 6A
Output Voltage 5V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 88%
Number of Outputs 1
JESD-30 Code R-MDMA-P6
Time@Peak Reflow Temperature-Max (s) 10
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 30W
Power (Watts) 30W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP, OVP, SCP
Size / Dimension 2.00Lx1.00W x 0.64 H 50.8mmx25.4mmx16.3mm
Series PQA30-D (30W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
