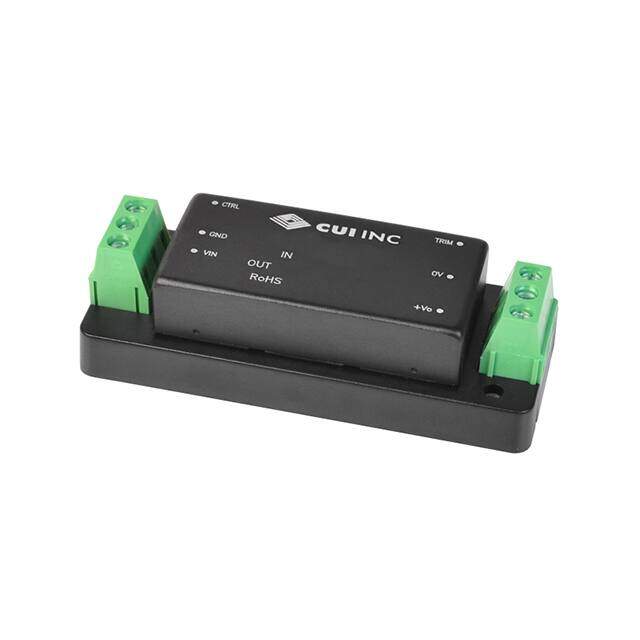

PQA30-D24-S3-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERT 30W 3.3V OUTPUT CH
PDF
/
Inventory: 9467
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 11.938mm
Technical
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 3.3V
Max Output Current 6A
Output Voltage 3.3V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 85%
Approval Agency CE
Number of Outputs 1
JESD-30 Code R-MXMA-X6
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 20W
Power (Watts) 30W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, OVP, SCP
Size / Dimension 2.99Lx1.24W x 0.84 H 76.0mmx31.5mmx21.2mm
Series PQA30-T (30W)
Packaging Tube
Operating Temperature -40°C~85°C With Derating
Physical
Mounting Type Chassis Mount
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
