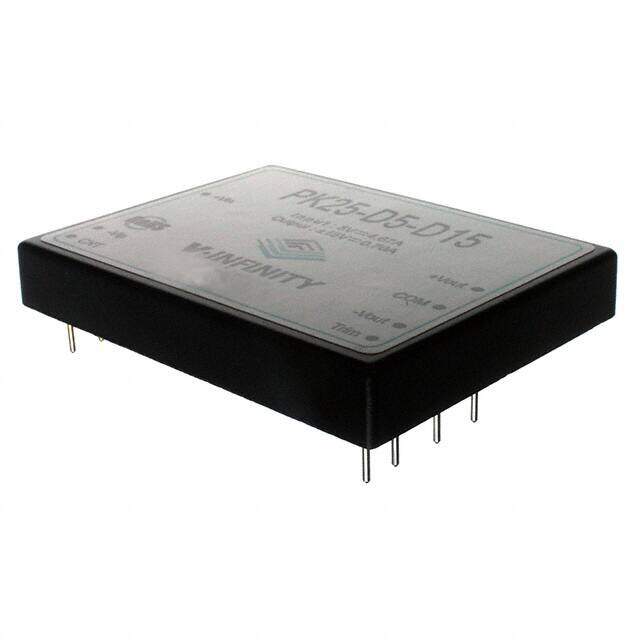

PK25-D5-D15
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-15V OUT 25.5W
PDF
/
Inventory: 5669
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Technical
Operating Temperature -20°C~71°C
Packaging Bulk
Published 2012
Series PK25 (25W)
Size / Dimension 2.56Lx2.00W x 0.38 H 65.0mmx50.8mmx9.7mm
Feature Remote On/Off, OCP, OVP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 25W
Max Power Dissipation 21W
Reach Compliance Code compliant
Number of Outputs 2
Efficiency 77%
Voltage - Isolation 500V
Voltage - Input (Max) 9V
Max Output Current 700mA
Voltage - Output 1 15V
Voltage - Input (Min) 4.5V
Current - Output (Max) 700mA 700mA
Control Features Enable, Active Low
Voltage - Output 2 -15V
Dimensions
Height 9.652mm
Compliance
RoHS Status Non-RoHS Compliant
