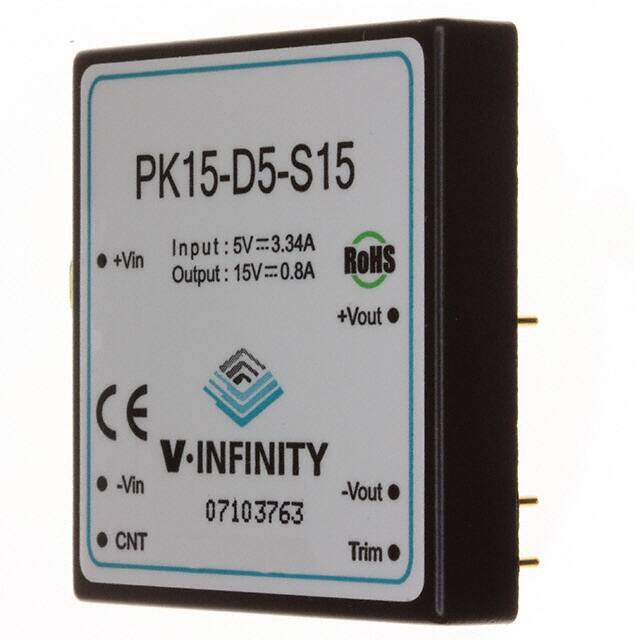

PK15-D5-S15
RoHS
/
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 15V OUT 12W
PDF
/
Inventory: 5435
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 45mm
Length 50mm
Height 9.398mm
Technical
Control Features Enable, Active Low
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 15V
Max Output Current 800mA
Output Voltage 15V
Voltage - Input (Max) 7.2V
Voltage - Isolation 500V
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-XDMA-P7
Reach Compliance Code compliant
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 12W
Additional Feature SEATED HGT-NOM
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OCP, OVP
Size / Dimension 1.85Lx1.65W x 0.37 H 47.0mmx41.9mmx9.5mm
Series PK15 (15W)
Published 2012
Packaging Bulk
Operating Temperature -20°C~71°C
Physical
Package / Case 5-DIP Module
Mounting Type Through Hole
Mount Through Hole
