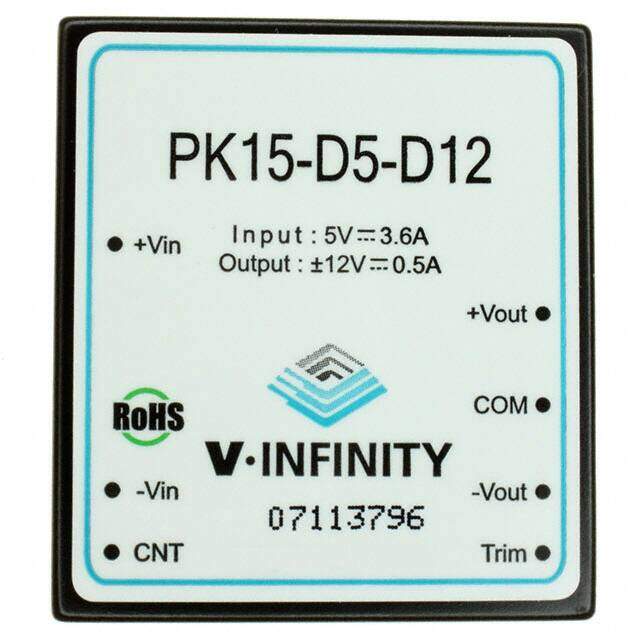

PK15-D5-D12
RoHS
/
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-12V OUT 12W
PDF
/
Inventory: 2517
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module
Surface Mount NO
Technical
Operating Temperature -20°C~71°C
Packaging Bulk
Published 2009
Series PK15 (15W)
Size / Dimension 1.85Lx1.65W x 0.37 H 47.0mmx41.9mmx9.5mm
Feature Remote On/Off, OCP, OVP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Reach Compliance Code compliant
JESD-30 Code R-XDMA-P7
Number of Outputs 2
Efficiency 80%
Voltage - Isolation 500V
Voltage - Input (Max) 7.2V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Current - Output (Max) 500mA 500mA
Control Features Enable, Active Low
Voltage - Output 2 -12V
Dimensions
Height Seated (Max) 9.5mm
Length 50mm
Width 45mm
Compliance
RoHS Status Non-RoHS Compliant
